Equipment performance and features:

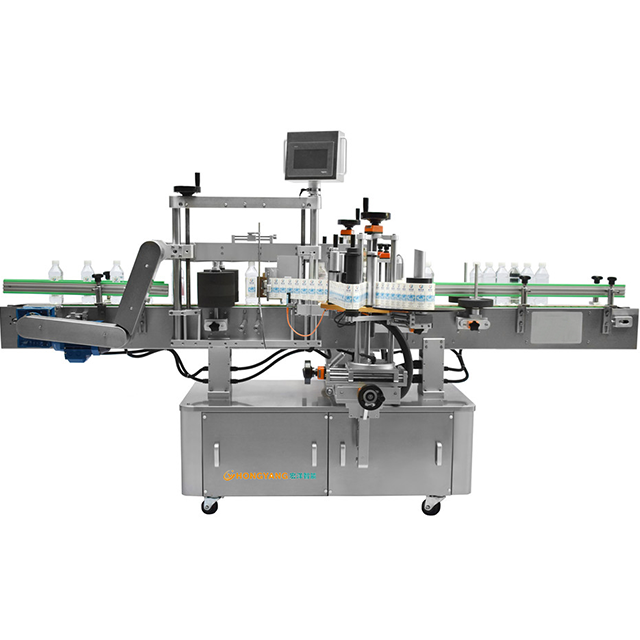

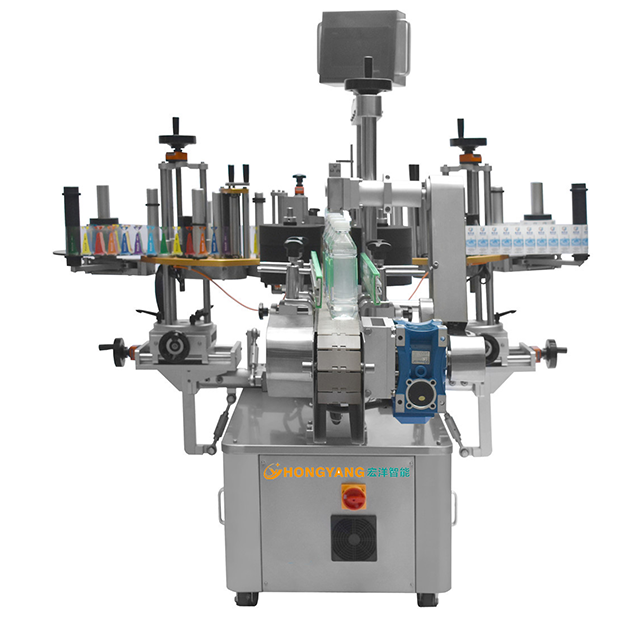

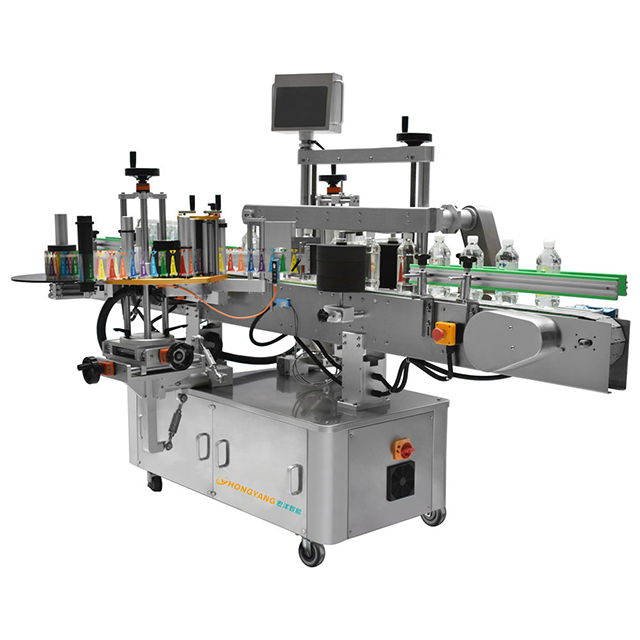

This equipment is suitable for single-sided and double-sided automatic labeling of flat bottles, round bottles and square bottles. It is suitable for all bottle types except for special needs fixed-point positioning labeling bottle types
After adding a round bottle mechanism or square bottle mechanism, the enclosed labeling of round bottle/square bottle can be realized.
Dual operation interface in Chinese and English, and color recognition blocks, simple and easy to learn, a truly intelligent device
High power, ultra-small moment of inertia, large torque to send the bid motor, the sending speed can reach 45 meters/minute
8-dimensional space adjustment of the marker, multi-path adjustment of the bottle type, can be tilted at ±12°, and can be easily completed with taper bottle type labeling
The pressure belt is supported by double vertical rods, double screw chain transmission, large adjustment handwheel, easy and simple adjustment
Separate press belt design ensures that every bottle enters the bottle under an independent press belt, avoiding labeling accuracy errors caused by bottle height difference to the greatest extent.
Technical parameters:
380V 50Hz 3000W
Product model : | DDU-1602 |
Bidding speed: | 0.1-45 meters per minute adjustable |
Maximum diameter of label: | 350 mm |
Maximum label width: | 130 mm |
Minimum label width: | 15mm |
Working face height: | 900mm |
Maximum size of the quilt: | Thickness (diameter) ≤130mm |
Labeling accuracy: | ±1mm (related to the appearance of the object being pasted) |
Marking accuracy: | ±0.3 mm |
Overall machine size: | 3000*1500*1680mm |
The weight of the whole machine: | 400 Kg |
