Equipment performance and features:

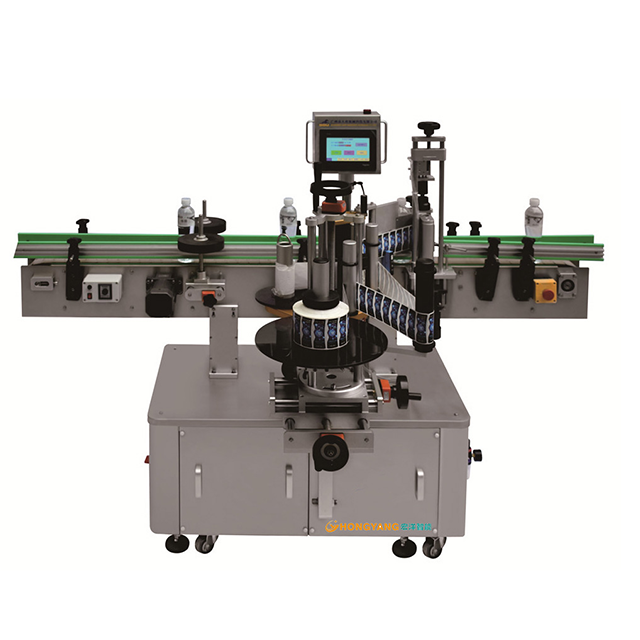

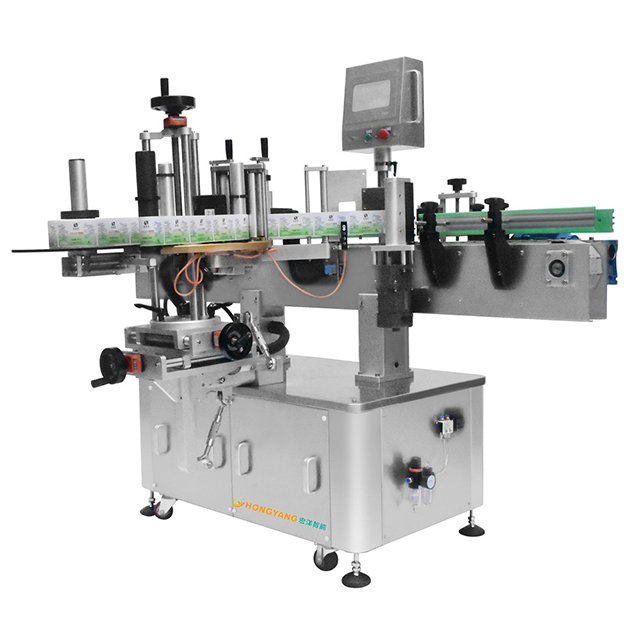

This equipment is suitable for the fixed-point positioning, single-sided, semi-encircled and fully encircled automatic labeling of round bottles.
Dual operation interface in Chinese and English, and color recognition blocks, simple and easy to learn, a truly intelligent device
High power, ultra-small moment of inertia, large torque to send the bid motor, the sending speed can reach 45 meters/minute
8-dimensional space adjustment of the marker, replace the bottle type and multi-path adjustment, can be tilted at ±12°, and easily complete the tapered bottle type labeling
Reciprocating cylinder clamping positioning, labeling can be specified in special positions, and symmetrical labeling printed together with the front and back labels
Technical parameters:
220V 50Hz 1200W
Product model: | DDU-1603 |
Bidding speed: | 0.1-45 meters per minute adjustable |
Maximum diameter of label: | 350 mm |
Maximum label width: | 130 mm |
Minimum label width: | 15mm |
Working face height: | 900mm |
Maximum size of the quilt: | Thickness (diameter) ≤130mm |
Labeling accuracy: | ±1mm (related to the appearance of the object being pasted) |
Marking accuracy: | ±0.3 mm |
Use air pressure: | 3-5KG 3L/min |
Overall machine size: | L2000*1200*1500mm |
The weight of the whole machine: | About 260 Kg |
