Product Features:

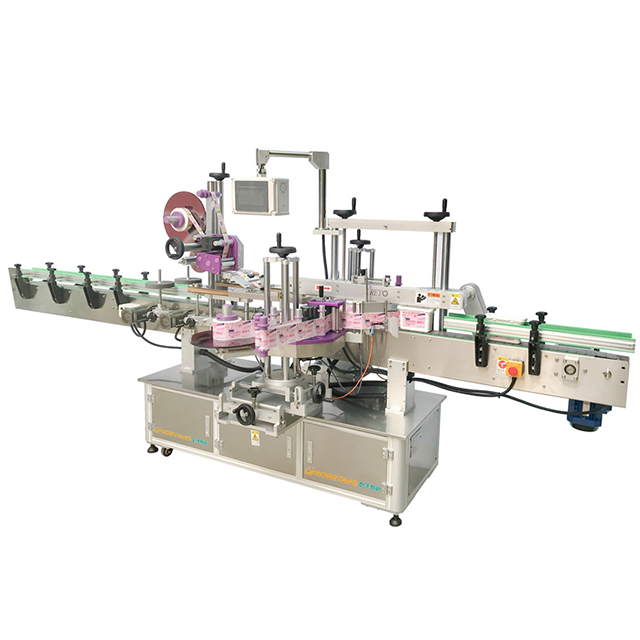

◆This machine model is suitable for round bottles, square bottles, flat bottles, elliptical, conical bottles, and special-shaped bottles, and realize single-side side labeling and double-side labeling. Adding a marking mechanism can complete the folding angle on both sides, three-sided folding angles and four-sided circular patching; adding a round bottle mechanism can complete the symmetrical patching front and back of the round bottle, full-circumferential patching and fixed-point positioning labeling, and connect it to the high-speed filling line to improve production efficiency and save costs. It can also be specially designed according to customer requirements.
◆Chinese and English operating system adopts German Siemens PLC and servo motor closed-loop control to ensure high-speed and stable labeling operation is simple and easy to learn.
◆The bottle pressing mechanism adopts double vertical rod support and is stable together. The crooked arm chain transmission is different from traditional gear transmission. It has low transmission resistance, improves synchronization with the conveyor chain and extends service life. The separated 9-section pressing strip product can be uniformly subjected to stress at different workstations, which is more conducive to the pressure belt heat dissipation.
◆The shaping belt has a large adjustment range of two-dimensional space adjustment, and uses polymer materials. The special design ensures the precise positioning of the objects being pasted and ensures the labeling accuracy.
◆Using a 750W high power, high torque, and ultra-small inertia servo motor to send the mark, and the sending speed can reach 60m/min
◆Bianpin sender: adopts three column structure, 8-dimensional space adjustment, and three-stage spring clutch control, and achieves accurate bid delivery through smooth operation.
Technical parameters:
Power supply: 380V 50Hz 4KW
Labeling speed: 60 meters/min
Maximum label diameter: Φ350 mm
Label paper core inner diameter: Φ76.2mm
Maximum label height: 205mm
Minimum label height: 15mm
Maximum size of the quilt: diameter 20-120mm
Labeling accuracy: ±1mm (related to the appearance of the object being pasted)
Used air source: 5KG
Overall machine size: 3000*1500*1650mm
