| Quantity: | |
|---|---|
Equipment performance characteristics:
This equipment is suitable for automatic labeling of single/double/three marks for each bottle type, and can realize fixed-point positioning and enclosed automatic labeling.
Dual operation interface in Chinese and English, and color recognition blocks, simple and easy to learn, a truly intelligent device
High power, ultra-small moment of inertia, large torque to send the bid motor, the sending speed can reach 60 meters/minute
Use screw-free and polymer star wheel assembly to enter and exit the bottle to minimize the scratching degree of labeled products and ensure the smoothness of entering and exiting the bottle to the greatest extent.
8-dimensional space adjustment of the marker, multi-path adjustment of the bottle type, can be tilted at ±12°, and can be easily completed with taper bottle type labeling
The production capacity is available from 0-48,000 bottles per hour, and is connected to the front-end equipment to ensure the efficiency of the entire line, greatly improving the automation of the entire line and saving human resources.
Technical parameters:

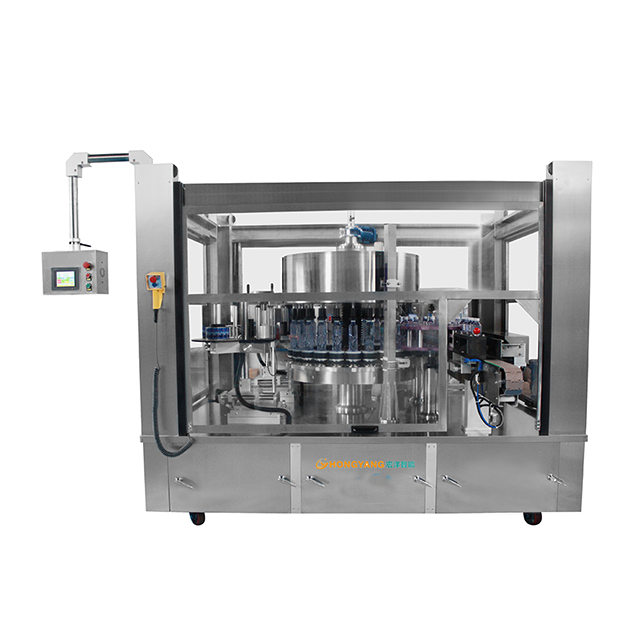

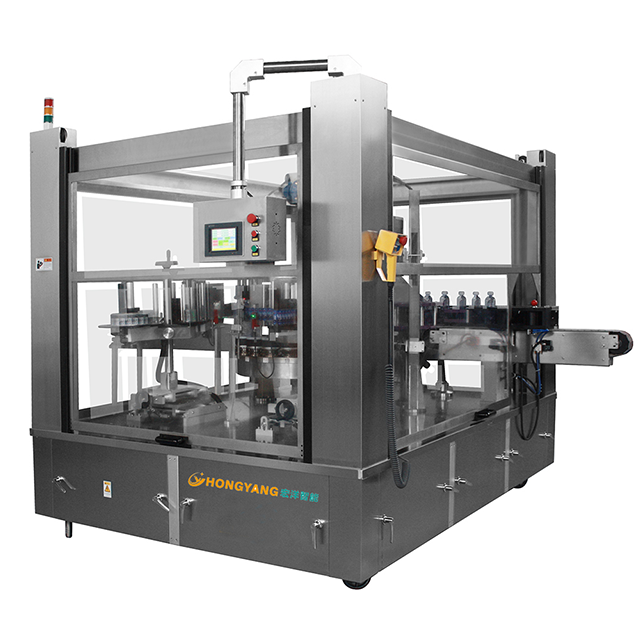

Fully automatic rotary high-speed positioning/unpositioning self-adhesive labeling machine
380V 50Hz 6000W
Product model: | DDU-G |
Bidding speed: |
Overall machine size: 0.1-60m/min adjustable |
Maximum diameter of label: | 350 mm |
Maximum label width: | 130 mm |
Minimum label width: | 15mm |
Working face height: | 900mm |
Maximum size of the quilt: | Thickness (diameter) ≤130mm |
Labeling accuracy: | ±1 mm (related to the appearance of the object being pasted) |
Marking accuracy: | ±0.3 mm |
Use air pressure: | 3-5KG |
